Use Cases

To demo/show and test the application with use cases, the Workflow Modeler is needed. The Workflow Modeler is a web application that can be used to create and edit workflows. It can be found in the following repository: https://github.com/PlanQK/workflow-modeler

To create a use case you can start the Docker Compose from the Use Case repository.

The following services should now be available:

• qunicorn: localhost:5005/swagger-ui/

• workflow-modeler: localhost:8080/

• camunda: localhost:8078/camunda/app/

To create a new use case check the README of the Use Case repository.

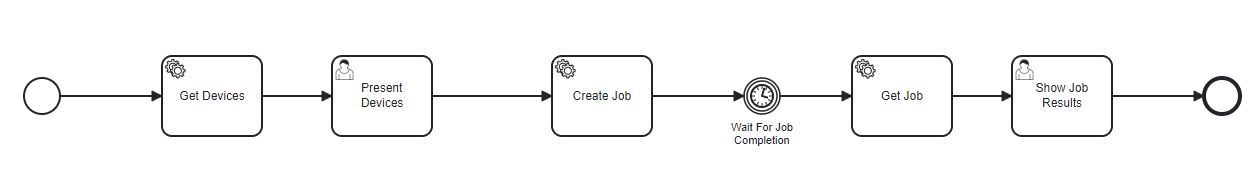

Example Use Case: Get Devices and Create Job

1. Get all devices

2. UserTask: Let the user evaluate the results, the user can now select a device

3. Create a job with the chosen device, and other user inputs

4. Get the results/details of the job

5. UserTask: Let the user evaluate the results
